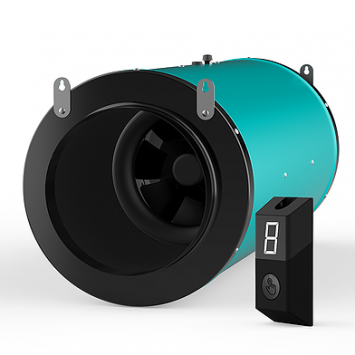

Sigilventus EC Silenced Fan - 8 Speed Controller 200mm

Price:

$640.00

200mm - 1205 M3/h - 75W - 8 Speed controller

SIGILVENTUS 8" EC SILENCED FAN is simply designed to make the wrapped 200mm EC motor fan work quietly with no-humming, no vibration and no airlow loss. Due to the use of the selected high density acoustic foam, it has been proved to be one of the quietest inline fans in the horticulture industry.

ENGINEERED SILENCD BODY

Using durable piano wire springs to attach EC fan motor to the steel silencing housing, it simply makes the whole fan vibration-free. The acoustic foam used inside is Eco and fire-proof for safety operation and meeting the standard of the application in HVACR industry.

INTELLIGENT AND UNIVERSALLY COMPATIBLE

It supports universal ventilation systems by offering 0-10vdc control signals, as well as PWM and Potentiometer and offers adaptors for other 3pins EC fan controllers and RJ45 controllers.

BEST HYDROPONIC VENTILATION SOLUTION EVER

SigilVentus Silenced Fans are all built with EC motor fan, which has the up-to-date EC technology. Unlike traditional AC motor or badly built EC/DC motor, it is totally free of buzzing at low speeds. And due to years of specialized EC tech research and development, SigilVentus offers the most cost-effective EC solution and proved to be the most affordable EC silenced fan on the market and best in its class.

Model SE-A200-J01
Dimension 699mm (L) x 307mm(H)
Duct Size 8“|200mm
Rated Voltage 110V~120V | 220V~240V
Max. Power C. 75W
Frequency 50Hz|60Hz
Max. Speed 3800RPM
Max. Airflow 710CFM | 1205M3H
Static Pressure 53mmH2O | 520Pa
Signal Outputs PWM, 0-10V, POT, FG
MAX. Noise 51dBA[1M-INLET]
Housing Material Steel
Acoustic Foam Fire-Proof
Motor Type EC Motor
Net Weight 7.5kgs
IP Rating IPX4
Installation 4 Hanging Brackets
